D2

Robust and reliable hood-type dishwasher

D2 is a robust and reliable hood-type dishwasher, available in three product lines: Master, Base, and Core.

All three come standard equipped with stainless steel wash and rinse arms, rinse aid and detergent dosing, drain pump, break tank and rinse pump. Master line also features water change and self-cleaning programmes, Wi-Fi connectivity, and a full-colour LCD display on a flexible satellite arm that can be mounted on either side of the hood, allowing flexible orientation and making it ideal for corner installations.

Master also features our innovative Sequential Rinse Technology™ which minimizes water consumption giving Master the lowest Total Cost of Ownership (TCO) of the three, and optional features such as EcoExchanger and automatic hood.

D2 Master 626X626

Pass-through design with natural separation of dirty and clean areas

D2 is a pass-through dishwasher, designed to be installed with in and outlet tables for a fluent and smooth washing up area, that naturally separates clean and dirty items. Set it up either alongside a wall or in a corner.

Our smart Reversible tabling allows for installation with inlet from either right or left using the same table, thanks to a smart docking system that can be adjusted on site.

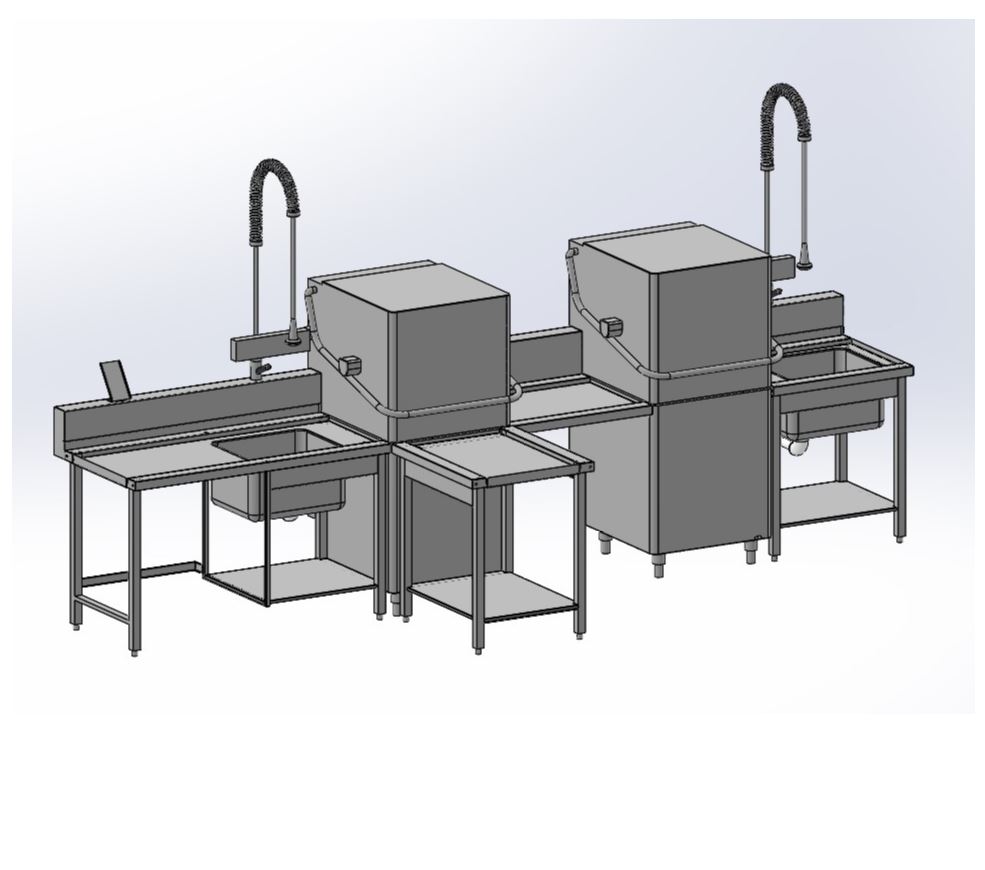

The smart Bridge Table connects two hood-type washers, which enables scalable capacity - perfect for fluctuation in visitor numbers during high and low season, or to boost capacity during larger events.

Download and learn more in the Tabling brochure.

Tabling brochure (En) →
Image Square X2 Bridge Banqueting

SIMpel™

Let us introduce you to a feature that will make your work life easier, whether you are an end-user or a service partner. We call it SIMpel. A smart tool that connects you with an online portal filled with all the relevant information about your Nor:disk ware washer.

Read more about it! →
Image And Text 840X840 QR code Scan

Want to see it live?

At Nor:disk, we’re proud of our performance. We want you to be able to experience it first-hand and see all the benefits that our dishwashers provide. Meet us in a local showroom, reference kitchen, or join us via live stream and we will talk you through our technology, and what it can do for you.

Book a demo →
X2 Demo Image And Text 840X840

D2 - technical details

Lines
Core • Base • Master
Outer dimensions (H x W x D)
Core: 1940 x 655 (handle +100) x 745 (handle +95) mm
Outer dimensions (H x W x D)
Base/Master: 1500/1950 (+50) x 655 x 745 mm • Master - Automatic hood: 1500/1950 (+50) x 655 x 800 mm Master w. EcoExchanger: 1980 (+50) x 655 x 800 mm
Wash programs
Glassware 1 min. • Dishware 2 min. • Flatware 3 min. • Utensils 8 min.
Start-up time - Water-change (at 55 °C)
Core: 12 min. / n/a • Base: 12 min. / n/a • Master: 12 min. / 11 min.
Meals per service
Up to 250
Dishware capacity
18 dinner plates • 12 soup plates max. Ø 240 mm • 25 Glasses/mugs Ø 90 mm
Wash water temperature
Factory setting 60 °C (adjustable 35-70 °C)
Rinse water temperature
Factory setting 85 °C (adjustable 65-90 °C)
Sound pressure level - ISO 11203 norm
Core: <68 dB(A) • Base/Master: <59 dB(A)
Water consumption /cycle
Core: 2.8 L • Base: 2.6 L • Master: 1.3 L

Pros

Web Icn Perfect Vatten

Easy

Web Icn Environment Gräs

Sustainable

Web Icn Capacity

Efficient

Web Icn Water Vatten

Smart Drain

Patented Rinse Symbol

The Sequential Rinse Technology™

Web Icn Energy Sol

Automatic energy-save mode

High Five Havtorn

On-site customizations

Wifif Cloud Connection Himmel

Built in connectivity

Foot Mechanism Vatten

Kick’n Wash with auto hood

Web Icn Ecoexchanger Gräs

EcoExchanger™

Web Icn Perfect Vatten

Easy

D2 is easy to buy, place, and install. Developed to be user-friendly and easy to operate, clean, and maintain. D2 makes dishwashing easier - so you can concentrate on more rewarding tasks. A real lifesaver in the kitchen.

Web Icn Environment Gräs

Sustainable

D2 Master has been developed with sustainability in mind. It uses from 1.3 L of water per cycle and is equipped with an energy-saving mode. D2 Master is best in class regarding silence, from 59 dB(A). Built to last, and with zero brass components.

Web Icn Capacity

Efficient

D2 Master has a fast start-up time, it is ready to be used in just 12 minutes. The wash cycles range from 1-8 minutes. When done for the day, simply use the AutoClean program to tidy up (3 min, 30 sec.). D2 Master has an app for HACCP reporting and is compliant with DIN 10534 hygiene guidelines.

Web Icn Water Vatten

Smart Drain

Smart Drain is a neat feature that where draining starts before the rinse cycle kicks in, saving water and energy, water and helping the water last a little longer before you need to change it.

Patented Rinse Symbol

The Sequential Rinse Technology™

The Sequential Rinse Technology™ decreases water and chemical consumption by 50%, which in turn helps save energy. (Master line)

Web Icn Energy Sol

Automatic energy-save mode

Every kWh costs. That is why D2 automatically goes into energy save mode if left idle for 20 minutes (adjustable). With the Automatic Hood option, the hood also lowers automatically to save even more energy.

High Five Havtorn

On-site customizations

Adjustable wash and rinse temperatures and chemical dosing - all fully customizable in a few seconds.

Wifif Cloud Connection Himmel

Built in connectivity

The built-in wifi feature allows you to connect to D2 Master to collect, edit, and monitor information such as HACCP data, consumption of chemicals, and more.

Foot Mechanism Vatten

Kick’n Wash with auto hood

No more pressing buttons - keep your hands free! A simple kick on the pedal automatically lowers the hood and starts the wash cycle. When finished, the hood rises automatically. Eliminates repetitive motions and helps avoid staff developing work-related injuries (MSDs). (Option: Master line)

Web Icn Ecoexchanger Gräs

EcoExchanger™

The add-on EcoExchanger cleverly combines steam reduction and heat recovery in one and improves the working environment while also reducing the energy needed for heating the wash tank. With self-cleaning function. (Option: Master line)

Web Icn Perfect Vatten

Easy

Web Icn Environment Gräs

Sustainable

Web Icn Capacity

Efficient

Web Icn Water Vatten

Smart Drain

Patented Rinse Symbol

The Sequential Rinse Technology™

Web Icn Energy Sol

Automatic energy-save mode

High Five Havtorn

On-site customizations

Wifif Cloud Connection Himmel

Built in connectivity

Foot Mechanism Vatten

Kick’n Wash with auto hood

Web Icn Ecoexchanger Gräs

EcoExchanger™

Web Icn Perfect Vatten

Easy

D2 is easy to buy, place, and install. Developed to be user-friendly and easy to operate, clean, and maintain. D2 makes dishwashing easier - so you can concentrate on more rewarding tasks. A real lifesaver in the kitchen.

Master, Base & Core in overview

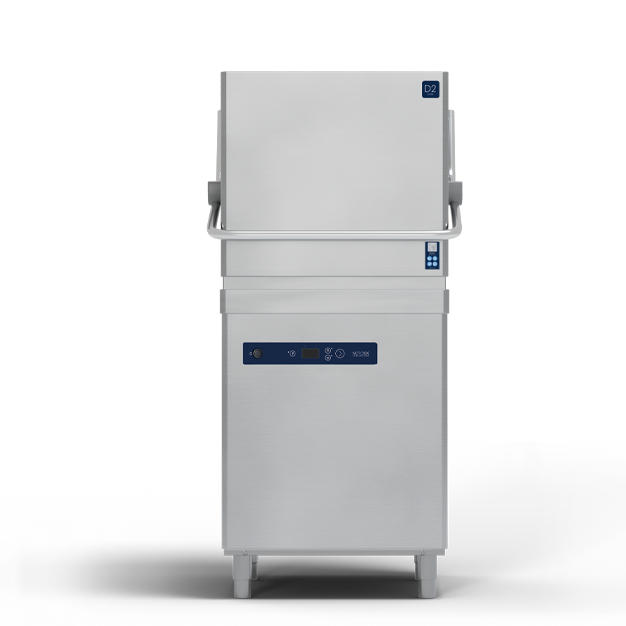

D2 Core 626X626

Core


+ Single skin
+ Rinse aid dosing
+ Detergent dosing
+ Break tank / Rinse pump
+ Drain pump
+ Smart drain

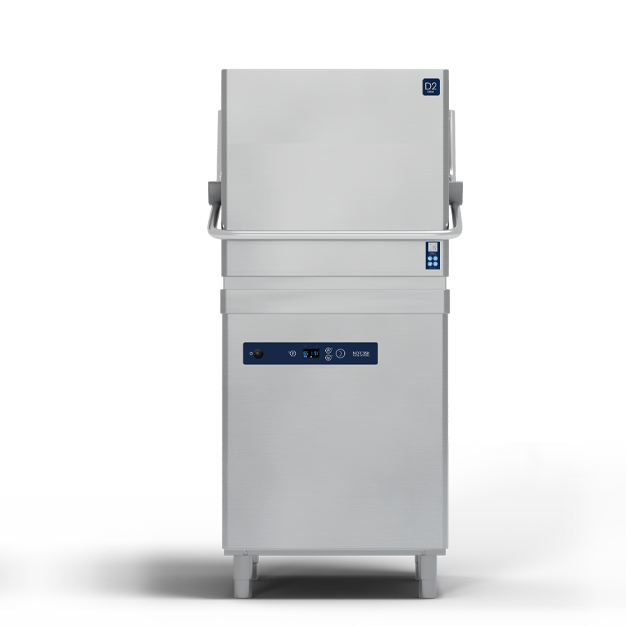

D2 Base 626X626

Base


+ Double skin
+ Rinse aid dosing
+ Detergent dosing
+ Break tank / Rinse pump
+ Drain pump
+ Smart drain

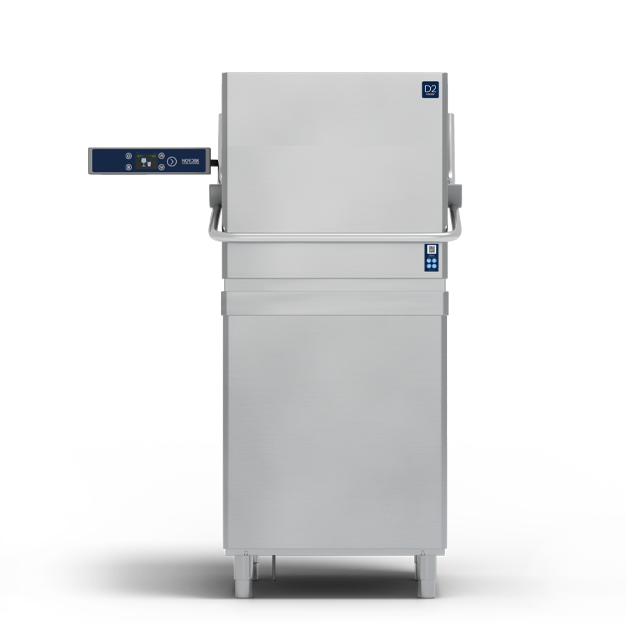

D2 Master 626X626

Master


+ Double skin
+ Rinse aid dosing
+ Detergent dosing
+ Break tank / Rinse pump
+ Drain pump
+ Smart drain
+ Water-change program
+ Self-cleaning program
+ WiFi connectivity
+ Sequential Rinse Technology™
+ EcoExchanger™ (option)
+ Automatic hood / Kick n' Wash (option)
+ Interface for power opt. - Only 400 V/50 Hz (option)

Line Up Environment 840

Match conveyor capacity with the smart Bridge Table

By connecting an X2 Master and D2 Master with the Bridge Table, you can enhance capacity to fit the needs of the day - or the season. Use both for a high-productivity pass-through solution, with through-put matching that of a tunnel dishwasher with up to 864 dinner plates, or 360 serving trays per hour. On slower days and low season, only start up one and save on electricity, water, chemicals, and money.

Is D2 Master a suitable option for you?

Leave your details below and we will contact you shortly to discuss.

* By filling in the form above, you agree that Nor:disk stores your personal information. The purpose of such a task is to improve the website´s reliablility and safety for you as a visitor and to tailor your experience. We handle all personal data according to GDPR and your consent can be withdrawn when desired. You can read more about how we use cookies here: https://www.nordiskclean.com/sv-se/privacy-policy/

Display Web3 840 840

User-friendly interface

D2 Master is intuitive to use and communicates via icons and infographics, which helps eliminate language barriers and keeps dishwashing easy and efficient. The full-colour LCD display is mounted on a satellite arm that can be mounted on either side of the hood, allowing flexible orientation and making it ideal for corner installations.

Related accessories

Reversible tables

Tables designed to be used with the hood-type models in our Water-Smart range.

Find out more →
Short Lineup2 290X450

Related accessories

X2 High productivity wash basket

Dishware wash mode capacity: 9 x GN 1/1, 18 x GN 1/2 serving trays max. depth 20 mm. Cookware wash mode capacity (X2 only): 18 x GN 1/1 grids, 9 x GN 1/1 lids or chopping board depth 20 mm, 2 x 600...

Find out more →
Reversible Empty 290 450

Related accessories

Softener Compact

High-performance, compact commercial water softener for X2, D2 and D1.

Find out more →
28145

Related accessories

EcoExchanger

The add-on EcoExchanger cleverly combines steam reduction and heat recovery in one and improves the working environment while also reducing the energy needed for heating the wash tank.

Find out more →
Ecoexchanger Template Header Image 290X450

Related accessories

Glassware wash rack

Standard size, 500 x 500 mm base. Capacity 25 mugs Ø 90 mm or 25 glasses Ø 90 mm.

Find out more →
X2 Glassbucket Blue Small Web

Related accessories

Dishware wash rack

Standard size, 500 x 500 mm base. Capacity 18 dinner plates or 12 soup plates, max. Ø 240 mm.

Find out more →
X2 Platebucket Beige Small Web

Related accessories

Steam hood for D2 and X2

A stainless steel steam hood that is connected via a tube to the ventilation system of the kitchen. Steam from the wash cycle will not be emitted to the room at the end of each program. This improv...

Find out more →
31120
Nordisk Service Right Image And Text 840X840

Check out the new Save Per Use

Save Per Use is the convenient, cost-efficient, easy, and secure way to finance your Nor:disk industrial dishwasher. One price - all-inclusive!

Read more about it here →
Wipe Nordisk Logo Image And Text 840X840

Let us help you find a perfect fit

Not sure which model fits you? If you're new to Nor:disk, finding the right product can be tricky. Contact us or a local Nor:disk Premium Partner to help you plan your ware washing.

Premium Partners →
