D1

Robust and reliable undercounter dishwasher

D1 is a robust and reliable undercounter dishwasher, available in three product lines: Master, Base, and Core.

All three come standard equipped with stainless steel wash and rinse arms, rinse aid and detergent dosing, drain pump, break tank and rinse pump. In addition, Master line also features water change and self-cleaning programmes, Wi-Fi connectivity, full-colour LCD display, and optional features such as EcoExchanger and D1 Master Glass.

Master also features our innovative Sequential Rinse Technology™, which minimizes water consumption, giving Master the lowest Total Cost of Ownership (TCO) of the three.

D1 Master 626X626 (1)

Version tailored for glass washing

D1 Master Glass is a version of D1 Master that specializes your dishwasher for glasswashing. Dedicates all wash cycles to glasswashing and adds a wire glasswash rack to the accessory pack.

Perfect if you want to exchange an existing glass washer, and already have external filters and reverse osmosis systems set up.

D1 Master Glass 1080X1080

SIMpel™

Let us introduce you to a feature that will make your work life easier, whether you are an end-user or a service partner. We call it SIMpel. A smart tool that connects you with an online portal filled with all the relevant information about your Nor:disk ware washer.

SIMpel →
Image And Text 840X840 QR code Scan

Want to see it live?

At Nor:disk, we’re proud of our performance. We want you to be able to experience it first-hand and see all the benefits that our dishwashers provide. Meet us in a local showroom, reference kitchen, or join us via live stream and we will talk you through our technology, and what it can do for you.

Book a demo →
X2 Demo Image And Text 840X840

D1 - technical details

Lines
Core • Base • Master (+ Master Glass)
Outer dimensions (H x W x D/open door)
Core: 825 x 565 x 630/1010 mm • Master/Base: 844 (+10) x 600 x 633/1072 mm
Wash programs
Glassware 1:30 min. • Dishware 2 min. • Cutlery 3 min. • Utensils 8 min. (Master Glass: 1:30 min. • 2 min. • 3 min.)
Start-up time / Water-change
Core: 25 min / n/a • Base: 11 min. / n/a • Master: 11 min. / 8 min.
Meals per service
Up to 100
Dishware capacity
18 dinner plates • 12 soup plates max. Ø 240 mm
Glassware capacity
25 glasses Ø 90 mm • 25 mugs Ø 90 mm
Wash water temperature
Factory setting 60 °C (adjustable 35-70 °C)
Rinse water temperature
Factory setting 85 °C (adjustable 65-90 °C) (Master Glass: 70 ºC)
Sound pressure level - ISO 11203 norm
Core: <62 dB(A) • Base/Master: 56 dB(A)
Water per cycle (litres)
Core: 2.6 • Base: 2.6 • Master: 1.3 (Master Glass: 2.0)

Pros

Web Icn Perfect Vatten

Easy

Web Icn Environment Gräs

Sustainable

Web Icn Capacity

Efficient

Web Icn Water Vatten

Smart Drain

Patented Rinse Symbol

Sequential Rinse Technology™

Web Icn Energy Sol

Automatic energy-save mode

Wifif Cloud Connection Himmel

Built in connectivity

High Five Havtorn

On-site customizations

Web Icn Perfect Vatten

Easy

D1 is easy to buy, place and install. It is developed to be user-friendly and simple to use and operate. D1 makes dishwashing easier so you can concentrate on more rewarding tasks than dishwashing. It is also easy to clean and maintain. A real lifesaver in the kitchen.

Web Icn Environment Gräs

Sustainable

D1 Master has been developed with sustainability in mind. It uses from 1.3 L of water per cycle and is equipped with an energy-saving mode. D1 Master is best in class regarding silence - from 56 dB(A). Built to last, with zero brass components.

Web Icn Capacity

Efficient

D1 Master has a fast start-up time, it is ready to be used in just 11 minutes. Wash cycles range from 1 minute, and when done for the day, simply use the AutoClean program (1:30 min.). D1 Master has an app for HACCP reporting and is compliant with DIN 10534 hygiene guidelines.

Web Icn Water Vatten

Smart Drain

Smart Drain is a neat feature that where draining starts before the rinse cycle kicks in, saving water and energy, water and helping the water last a little longer before you need to change it.

Patented Rinse Symbol

Sequential Rinse Technology™

The Sequential Rinse Technology™ decreases water and chemical consumption by 50%, which in turn helps save energy. (Master and Master Glass versions only)

Web Icn Energy Sol

Automatic energy-save mode

Every kWh costs. That’s why D1 automatically goes into energy-save mode if left idle for 20 minutes (adjustable).

Wifif Cloud Connection Himmel

Built in connectivity

The built-in Wi-Fi feature allows you to connect to D1 Master and collect, edit, and monitor information such as HACCP data, chemical consumption, and much more.

High Five Havtorn

On-site customizations

Adjustable wash and rinse temperatures, chemical dosing - all fully customizable in a few seconds.

Web Icn Perfect Vatten

Easy

Web Icn Environment Gräs

Sustainable

Web Icn Capacity

Efficient

Web Icn Water Vatten

Smart Drain

Patented Rinse Symbol

Sequential Rinse Technology™

Web Icn Energy Sol

Automatic energy-save mode

Wifif Cloud Connection Himmel

Built in connectivity

High Five Havtorn

On-site customizations

Web Icn Perfect Vatten

Easy

D1 is easy to buy, place and install. It is developed to be user-friendly and simple to use and operate. D1 makes dishwashing easier so you can concentrate on more rewarding tasks than dishwashing. It is also easy to clean and maintain. A real lifesaver in the kitchen.

Core, Base, & Master in overview

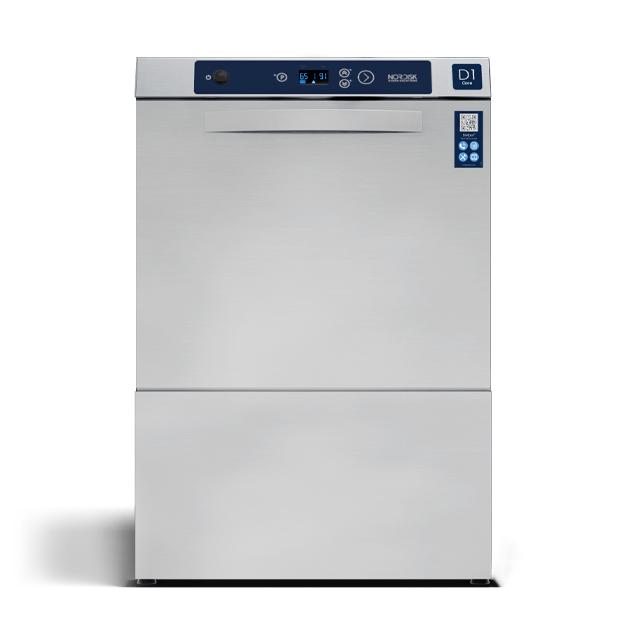

D1 Core 626X626

Core


+ Single skin w. insulated door
+ Rinse aid dosing
+ Detergent dosing
+ Break tank / Rinse pump
+ Drain pump
+ Smart drain

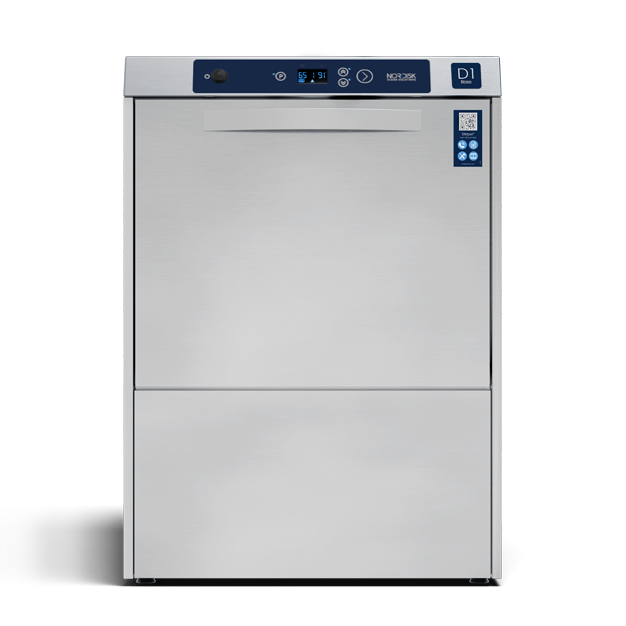

D1 Base 626X626

Base


+ Double skin
+ Rinse aid dosing
+ Detergent dosing
+ Break tank / Rinse pump
+ Drain pump
+ Smart drain

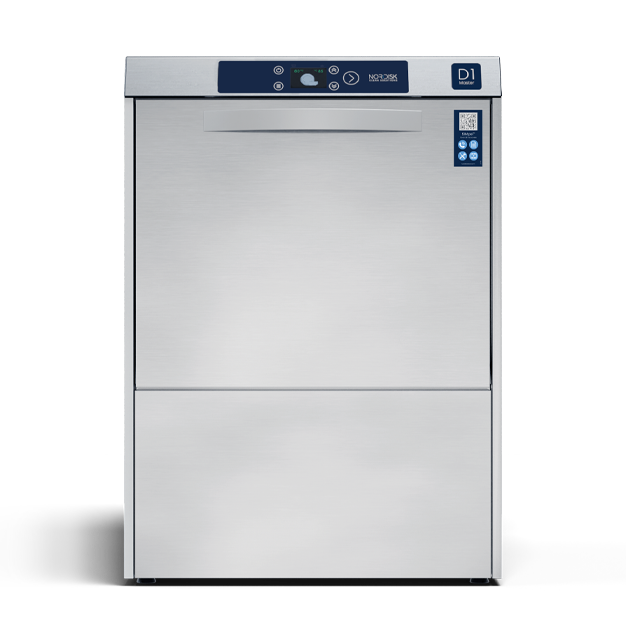

D1 Master 626X626 (1)

Master


+ Double skin
+ Rinse aid dosing
+ Detergent dosing
+ Break tank / Rinse pump
+ Drain pump
+ Smart drain
+ Water-change program
+ Self-cleaning program
+ WiFi connectivity
+ Sequential Rinse Technology™
+ Integrated water softener (option)
+ Glass versions - optimized for glass washing (option)
+ Interface for power opt. - Only 400 V/50 Hz (option)

Is D1 Master a suitable option for you?

Leave your details below and we will contact you shortly to discuss.

* By filling in the form above, you agree that Nor:disk stores your personal information. The purpose of such a task is to improve the website´s reliablility and safety for you as a visitor and to tailor your experience. We handle all personal data according to GDPR and your consent can be withdrawn when desired. You can read more about how we use cookies here: https://www.nordiskclean.com/sv-se/privacy-policy/

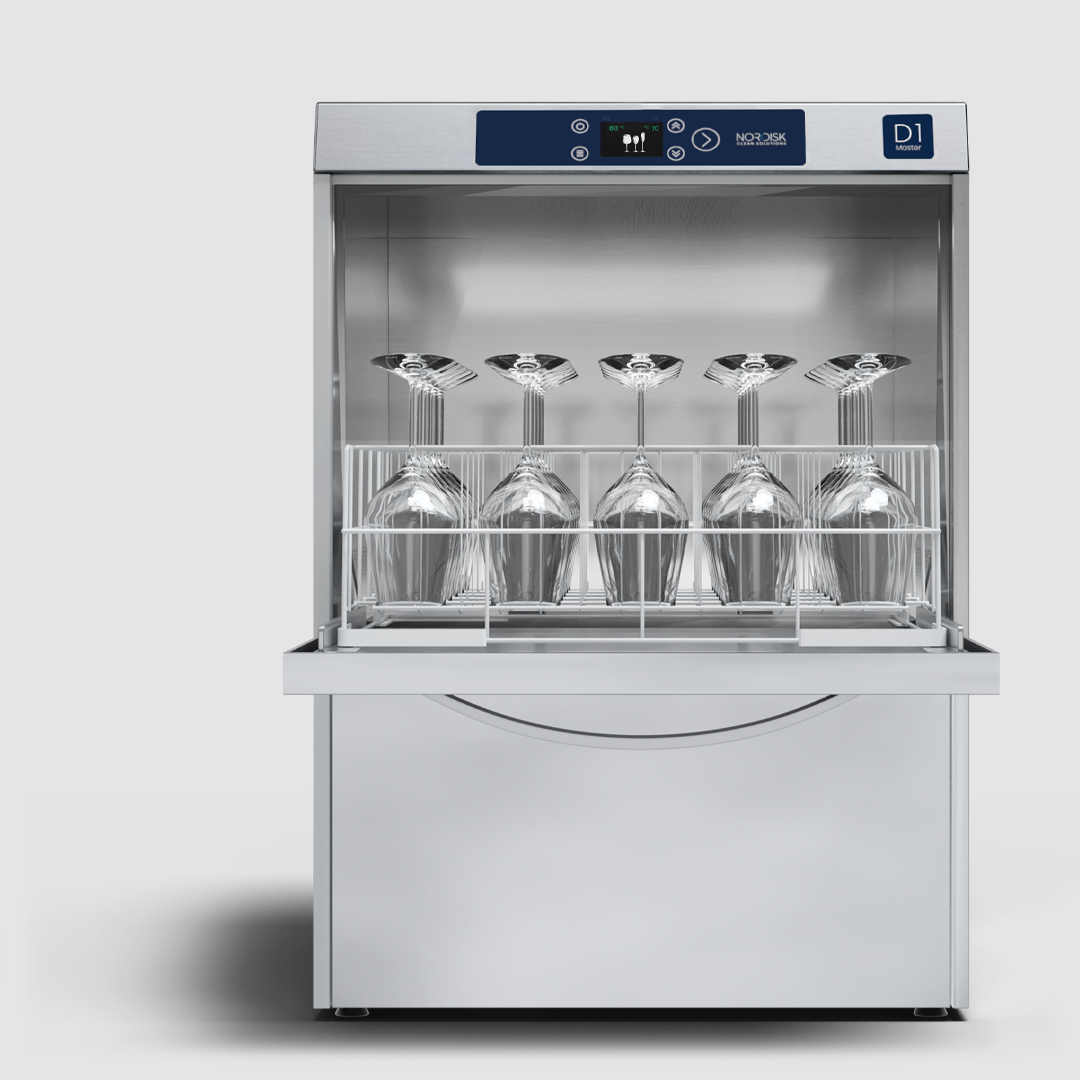

D1 Master Glass 1080X1080

D1 Master Glass (option)

D1 Master Glass is a version of D1 Master that specializes your dishwasher for glasswashing by dedicating all wash cycles to glasswashing, and adds a wire glasswash rack to the accessory pack. Perfect if you want to exchange an existing glass washer, and already have external filters and reverse osmosis systems set up.

Display Web3 840 840

User-friendly interface

D1 Master is intuitive to use and communicates via icons and infographics, which helps eliminate language barriers and keeps dishwashing easy and efficient.

D1 D2 Image and Text

Twice the productivity - Half the time

Used alongside X2 Master, D1 Master creates a high-efficiency dishwashing solution that works in parallel. During preparation, X2 Master rapidly cleans pots, pans, and utensils in just 3 minutes. During service, both machines operate simultaneously with dishwashing, and/or glasswashing, and the occasional pot, doubling throughput, increasing flexibility, and keeping service flowing without bottlenecks.

Related accessories

Softener Compact

High-performance, compact commercial water softener for X2, D2 and D1.

Find out more →
28145

Related accessories

Glassware wash rack

Standard size, 500 x 500 mm base. Capacity 25 mugs Ø 90 mm or 25 glasses Ø 90 mm.

Find out more →
X2 Glassbucket Blue Small Web

Related accessories

Dishware wash rack

Standard size, 500 x 500 mm base. Capacity 18 dinner plates or 12 soup plates, max. Ø 240 mm.

Find out more →
X2 Platebucket Beige Small Web

Related accessories

Stand for Undercounter machine

Create an ergonomic working height with the undercounter machine on it's stand.

Find out more →
31121

Related accessories

Stand for Undercounter machine, lockable with door

Create an ergonomic working height with the undercounter machine on it's stand.

Find out more →
31122
Nordisk Service Right Image And Text 840X840

Check out the new Save Per Use

Save Per Use is a convenient, cost-efficient, easy, and secure way to finance your Nor:disk industrial dishwasher. One price - all-inclusive!

Read more about it here →
Wipe Nordisk Logo Image And Text 840X840 (1)

Let us help you find a perfect fit

Not sure which model fits you? If you're new to Nor:disk, finding the right product can be tricky. Contact us or a local Nor:disk Premium Partner to help you plan your ware washing.

Premium Partners →
