Granule Technology™

X5 Granule - A New Era in Granule ware washing is here

A pass-through dishwasher that has undergone a total overhaul. The X5 Granule combines potwashing and dishwashing.

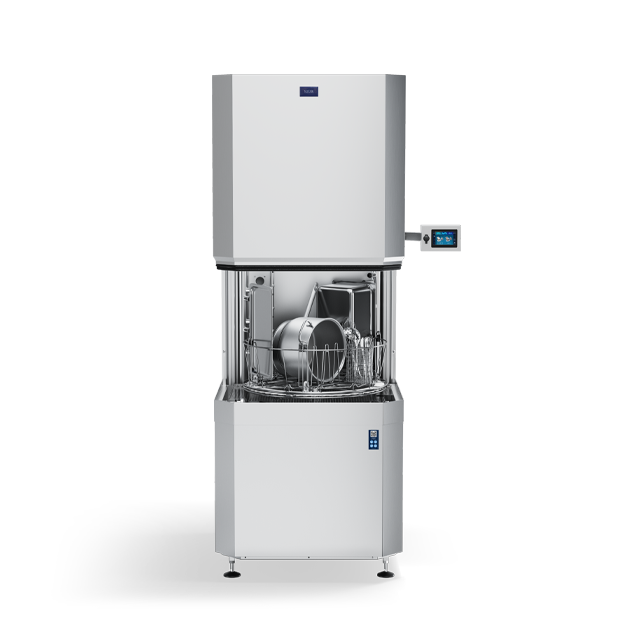

The NEW X5 Granule model offers the best in performance and flexibility for passthrough dishwashers.

The introduction of X5 Granule marks the start of a new era in Granule ware washing. We have revised and reworked all systems in our hood machine for combined pot and dishwashing. Throughout the design process, the user experience and overall sustainability of the product has guided our efforts. We have also put a lot of effort into the study of how water behaves with and without granules, so that we may bring the best possible product to the market.

X5 Granule Open 620X620px Web

High versatility for small to medium cook and serve kitchens

The X5 Granule combines the award-winning efficient Granule Technology for pots, pans, and utensils with traditional dishwashing techniques for plates, cutlery, and most types of crockery.



It is a commercial passthrough dishwasher for operations that cook and serve from 200 up to 1,800 meals per day. Depending on the daily wash volume, you can use X5 Granule for all your wash needs - pots as well as plates, glasses, and cutlery. Or you can use it as a pot washer, that handles the occasional crockery basket or even doubles as a dishwasher during low season and you don't have to run your regular dishwasher.

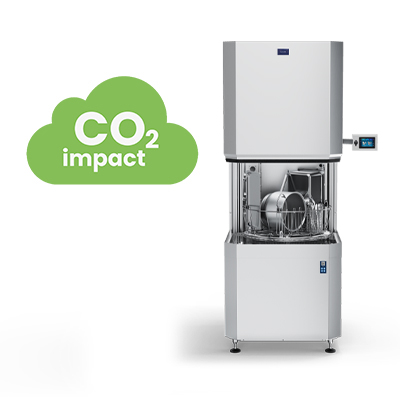

CO2 impact with X5 Granule

Materials: 1.76 tCO2e
Use: under calculation



For more details on LCA calculations for Nor:disk products, please contact us at sustainability@nordiskclean.com

X5 Granule Open CO2 400X400 Copy

Check out the Save per Use contract

Save Per Use is the new, convenient, easy and secure way to finance your Nor:disk commercial dishwasher. One price - all-inclusive! (Available for the U.K., Sweden, Germany, and France - for other markets, kindly contact marketing@nordiskclean.com)

Read more about it here →
Jeanette Mauritz Ica Täby Metro 400X400

Energy optimization with GD Link

GD Link is an energy optimization feature that can be fitted to all our granule-based ware washers and allows for the machine to communicate with systems that are based on the DIN 18875 standard.

GD Link enables connecting and controlling the machine through a central energy optimization unit, which helps to avoid any production disruptions in individual devices as the shutdown periods are computer-controlled and automatically reduced to a minimum. It also eliminates the instantaneous energy peaks that can happen when multiple types of equipment run simultaneously.

With the machine connected to an energy optimization system, you will minimize the overall peak load and at the same time minimize disruptions. GD link is possible to retrofit on all granule-based models dating back to 2015.

Talk to your local Nor:disk representative to learn more and order GD Link.

GD Link2

Want to see it live?

At Nor:disk, we’re proud of our performance. We want you to be able to experience it first-hand and see all the benefits that our pot washers provide. Meet us in a local showroom, reference kitchen, or join us via live stream and we will talk you through our technology, and what it can do for you.

Book a demo →
Image W Text 800X622 Livewash

Pros

Granules Midnatt

Minimum handling of granules

Web Icn Ergonomy User Friendly Gräs

Touch screen user interface

Web Icn Water Vatten

Water-saving

Capacity Sol

Easy loading

Web Icn Plus Combi Mode Vatten

Dishwash mode

Web Icn Sensor Vatten

Patented sensor

Icon Thumbs Up Himmel

6 wash programs

Web Icn Ecoexchanger Gräs

EcoExchanger®

Web Icn Time Gräs

Time-saving

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Reminders Sol

Auto-reminders

Dosing Equipment Midnatt

Dosing equipment

Granules Midnatt

Minimum handling of granules

Granules are automatically collected at the end of each cycle. The daily cleaning consists only of rinsing the granules while still in the machine. Once a week a more thorough cleaning of the granules is recommended. Autoclean program takes care of most of the daily machine cleaning needs at the end of a busy day.

Web Icn Ergonomy User Friendly Gräs

Touch screen user interface

New user interface with touch screen and pictograms makes for easy and intuitive operations. Control panel is at eye level for good ergonomics. Visual prompts when user error occurs.

Web Icn Water Vatten

Water-saving

Rinse water volume is only 3.6 litres per cycle. 40 % overall water savings per cycle compared to previous model.

Capacity Sol

Easy loading

The X5 Granule comes with our new and improved Pro Wash Basket. The pass-through model with tables separates dirty and clean and lets the operator work at a comfortable upright position.

Web Icn Plus Combi Mode Vatten

Dishwash mode

Low pressure wash programs for plates, cups, cutlery, and other more sensitive wash wares. Use a standard plastic crockery basket and the machine auto-detects and selects the appropriate wash mode for you.

Web Icn Sensor Vatten

Patented sensor

Built-in patented wash basket sensor detects what type of basket is loaded and auto-selects the appropriate wash mode for you. Helps avoid mishaps like accidentally treating your tableware with a harsh pot wash program.

Icon Thumbs Up Himmel

6 wash programs

Wash hygienically clean in minutes, using a minimum of natural resources! No pre-washing needed - just scrape and load, then choose wash mode; washing with or without granules or dishwashing. Then choose short or long cycle. It all depends on what you need to wash and how severely dirty or burnt it is.

Web Icn Ecoexchanger Gräs

EcoExchanger®

A heat exchanger and steam reduction unit in one. Makes use of the energy in the steam from the hot rinse water, while also minimizing the steam let out into the wash area, thus improving the working environment. Saves up to 40% of the energy to heat the rinse water for each cycle.

Web Icn Time Gräs

Time-saving

Clean wares in 2:20 minutes - without pre-washing. Dishwashing is done in 60 seconds.

Web Icn Hygiene New Havtorn

HACCP wash log

The control system stores vital HACCP data for up to 1000 wash cycles. The data log can be accessed via the display or exported to a USB stick for further use or storage.

Web Icn Reminders Sol

Auto-reminders

The smart control system keeps track of the number of run wash cycles and reminds you when it's time to change wash water, granules, and to schedule your next preventive maintenance appointment.

Dosing Equipment Midnatt

Dosing equipment

Liquid detergent and rinse aid dosing dispenser with peristaltic pump and detergent dosing sensor is available as an optional factory-fitted add-on.

Granules Midnatt

Minimum handling of granules

Web Icn Ergonomy User Friendly Gräs

Touch screen user interface

Web Icn Water Vatten

Water-saving

Capacity Sol

Easy loading

Web Icn Plus Combi Mode Vatten

Dishwash mode

Web Icn Sensor Vatten

Patented sensor

Icon Thumbs Up Himmel

6 wash programs

Web Icn Ecoexchanger Gräs

EcoExchanger®

Web Icn Time Gräs

Time-saving

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Reminders Sol

Auto-reminders

Dosing Equipment Midnatt

Dosing equipment

Granules Midnatt

Minimum handling of granules

Granules are automatically collected at the end of each cycle. The daily cleaning consists only of rinsing the granules while still in the machine. Once a week a more thorough cleaning of the granules is recommended. Autoclean program takes care of most of the daily machine cleaning needs at the end of a busy day.

X5 Granule technical details

Design
Hood-type pot washer with support for crockery and cutlery. Pass-through model with rotating wash basket.
Outer dimensions (H x W x D)
1695/2365 mm (±35) x 1144 (849+295) mm x 990 mm
Wash programs with granules:
Short: 2 min 20 sec/ Long: 4 min 15 sec
Wash programs without granules:
Short: 2 min / Long: 3 min 45 sec
Wash programs dishwashing mode:
Short: 1 min/ Long: 2 min 30 sec
Pot wash - capacity per program:
6+1 GN 1/1 OR 1/2 65 mm or 3 GN 1/1 OR 1/2 up to 200 mm depth and 3 GN 1/1 or 1/2 up to 65 mm depth or similar in other pots.
Pot wash - hourly capacity max./normal (normal incl. handling):
175/126 GN 1/1 or similar in other pots
Dishwashing mode - hourly capacity max./normal (normal incl. handling):
60 baskets / 40 baskets
Wash / rinse temperature:
65 °C / 85 °C
PLAY - ▸
Please accept marketing cookies to view our videos

X5 Granule

Hear our development team explain what's new and unique with the X5 Granule model.

X5G Hmi Transp

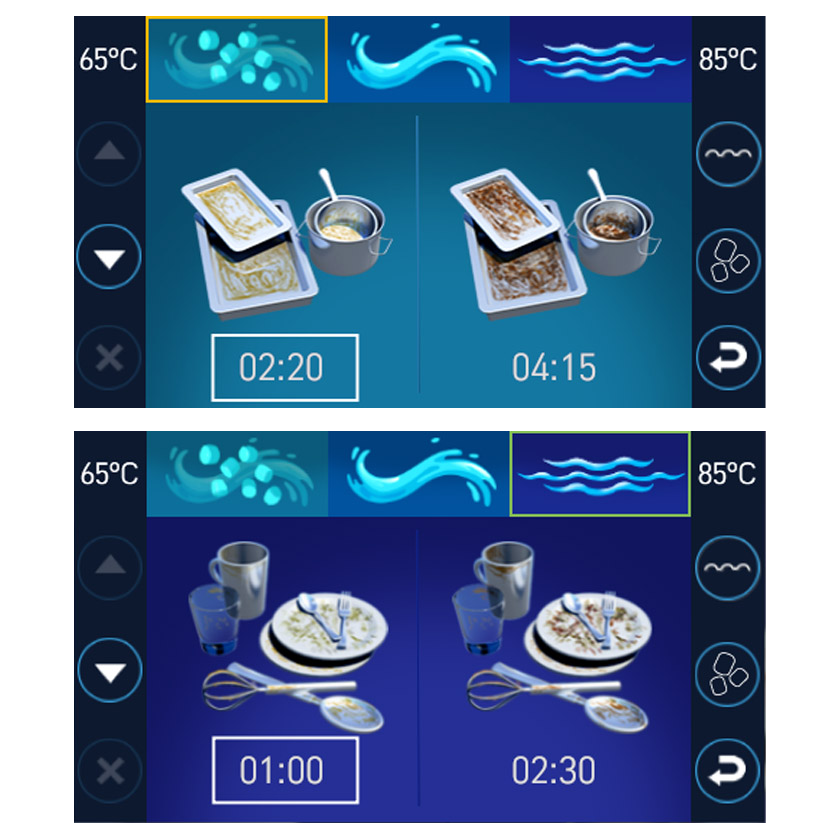

Touch screen for intuitive use

The new user interface with touch screen and pictograms makes for easy and intuitive operations. The control panel is at eye level for good ergonomics. Visual prompts appear when user error occurs.

Select washing with or without granules and short or long program depending on dirt levels. Dishwashing with lower pressure is automatically selected for polypropylene wash baskets or can be chosen from the control panel as well.

Sustainable Gräs

Sustainable improvements

    • 50% less welding reducing the carbon footprint
    • 40% water savings per cycle compared to previous model
    • 48% overall energy savings through smarter heating and an insulated rinse system

Web Icn Perfect Vatten

Increased efficiency

    • Shorter wash programs - secured hygiene in 1 - 4 minutes
    • 43% faster fill & heat / water change
    • 13% less granules needed

Tom Andersson Clean Plates Image And Text 840X840

Use as space-saving All-in-One solution for operations serving up to 250 meals per day

X5 Granule can be your All-in-One solution where you take care of all your washing needs - pots, pans utensils as well as plates, glasses, and crockery. Replace the need for a separate dishwasher, in operations cooking and serving up to 250 meals per day.

X5 Granule Pots Zoom Transp Image And Text 840X840

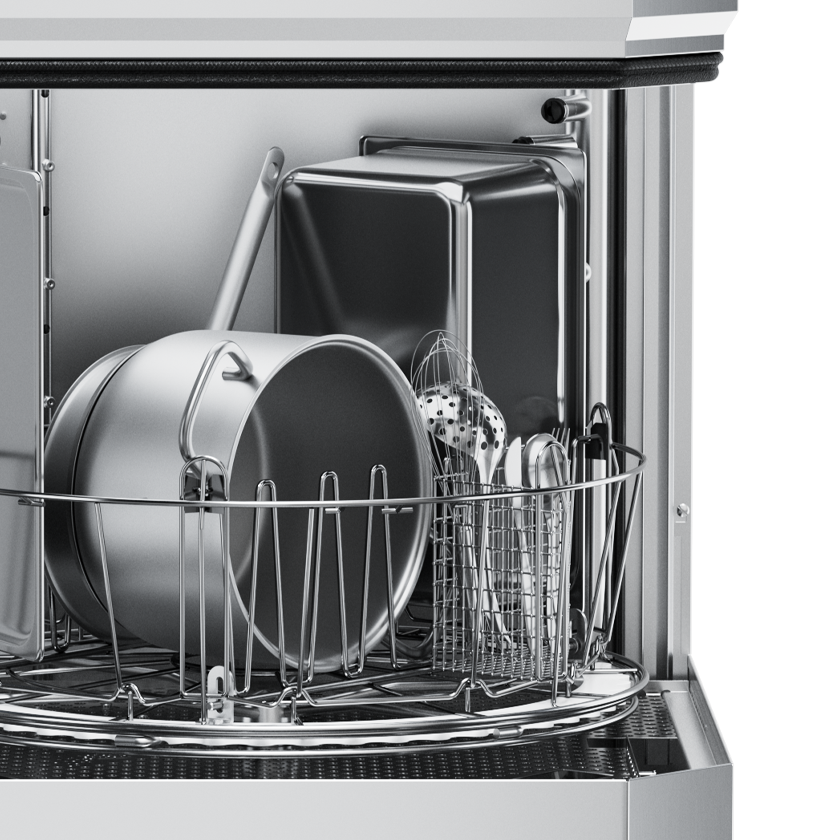

. . . or as a powerful pot washer with support for crockery for 150-1800 meals per day

Used as a Potwasher with Dishwashing Support solution, the X5 Granule is your trusty granule pot washer with a handy dishwashing support feature. Fits operations that prepare up to 1800 meals per day and need a reliable pot wash solution that can double as a dishwasher during peak hours or low season.

Is X5 Granule a suitable option for you?

Leave your details below and we will contact you shortly to discuss.

* By filling in the form above, you agree that Nor:disk stores your personal information. The purpose of such a task is to improve the website´s reliablility and safety for you as a visitor and to tailor your experience. We handle all personal data according to GDPR and your consent can be withdrawn when desired. You can read more about how we use cookies here: https://www.nordiskclean.com/sv-se/privacy-policy/

X5 Granule Nordisk Open And Close Moving 1

Ergonomic design and automatic hood

Automatic hood motion eliminates the otherwise repetitive task of opening and closing the machine between washes. The Kick'n Wash footpedal makes it even easier to start a wash program. The external control panel is placed to be easy to reach whether the hood is opened or closed. The machine's interior has been designed to create as little resistance as possible so that the basket will effortlessly slide from the table and into the machine with only a gentle push. These are some of the ways Nor:disk products are designed with ergonomy and the user in focus.

X5 Granule Nordisk Smaller 300 Dpi 840X840

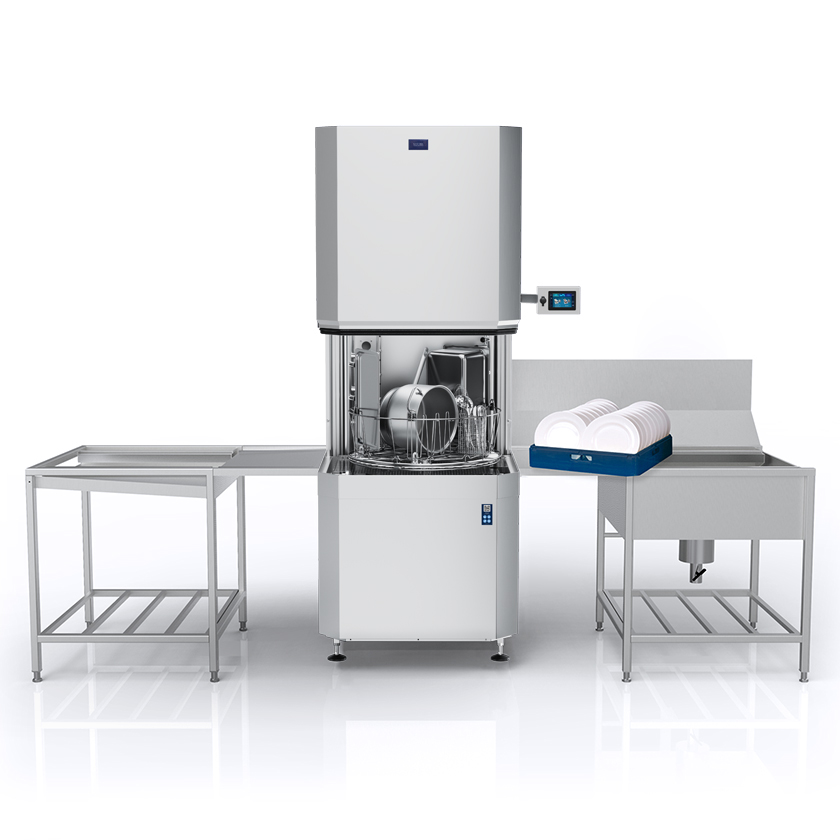

Integrate with tabling

X5 Granule is a pass-through dishwasher, designed to be installed in a table configuration. In combination with the tables, it creates a fluent and smooth washing up area, that naturally separates clean and dirty items - a welcomed side effect that not only provides for a good hygiene procedure but also helps avoid cross-contamination in the pot washing area. Set it up either along-side a wall or in a corner. Download the Tabling - pdf brochure for more information (see top of page).

Related accessories

Pro wash basket

Rotating wash basket for GN pans, with integrated foldable holders for pots, grids and trays.

Find out more →
29505 Pro Wash Basket 290X450

Related accessories

Utensil basket

Stainless net basket that slots into one of the 6 spaces in the Pro wash basket.

Find out more →
29495 Utensil Basket 290X450

Related accessories

Wash basket with bottom grid

Rotating basket for pots, pans, and utensils.

Find out more →
26140

Related accessories

Wash basket for plates

Standard dishwashing basket.

Find out more →
19882

Related accessories

Wash basket for glasses and cups

Standard basket for glasses and cups.

Find out more →
27068

Related accessories

Wash basket for cutlery

Standard wash basket for cutlery.

Find out more →
27069

Related accessories

Cover grid

Cover grid for 500 x 500 mm wash basket.

Find out more →
13796

Related accessories

Pot basket

Holds up to 2 large pots.

Find out more →
21423

Related accessories

Softener

High-performance, compact commercial water softener.

Find out more →
Header Image 290X450 Kin Softner 20197

Related accessories

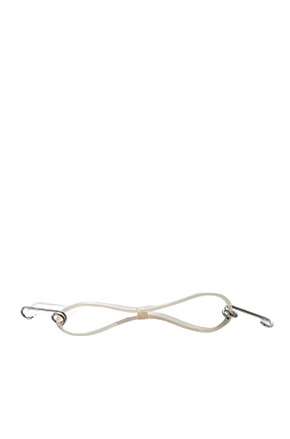

Flexible pot holder
