Granule Technology™

Combination front-loading pot washer with dishwashing mode

Wash every utensil in your kitchen - from the production area, to the deli counter, and serving your customers

Granule Smart+ is a perfect fit for kitchens with a broad variety of wash ware.

Blessed with dual power and efficiently combines the award-winning efficient Granule Technology™ with regular dishwashing technology. Patented automatic basket detection recognizes which basket is loaded and selects the right wash mode for you – PLUS mode for plastic ware and crockery, while pots, pans, chicken grids etc. are washed with Granule Technology™. Granule Smart+ in its cleanest form fits in less than 1 sqm and operates with a smart built-in loading table. Choose an edition with multiple baskets and trolleys for a more flexible solution.

Granuldisk smart+

The perfect solution for varying wash needs between 200 and 1,800 meals per day

Granule Smart+ is suitable for kitchens preparing between 200 and 1,800 meals per day, depending on preparation and distribution processes (depending on if used as all-in-one dish and pot washer (200 meals) or dedicated pot washer (1800 meals). Granule Smart+ is an excellent choice for kitchens with little space to spare and a varying range of utensils and kitchenware. With its dual power, four editions, and a broad range of accessories, it is both ideal for kitchens using mainly Gastronorm containers, as well as more delicate ware like deli counter display wares, glasses, cutlery, and cups.

The rotating basket loads most sizes in GN range and has a high hourly through-put for 65 mm deep GN1/1 pans. Add more baskets and smart accessories and inserts to extend your loading options and increase flow and capacity.

CO2 impact with Granule Smart+

Materials: 1.4 tCO2e
Use: 4.8 tCO2e



(Compared to washing in sinks - 52 tCO2e)



Direct use-phase emissions calculated from an estimated lifespan of 12.5 years, 320 wash days/year (emission factor 153,95).

For more details on LCA calculations for Nor:disk products, please contact us at sustainability@nordiskclean.com

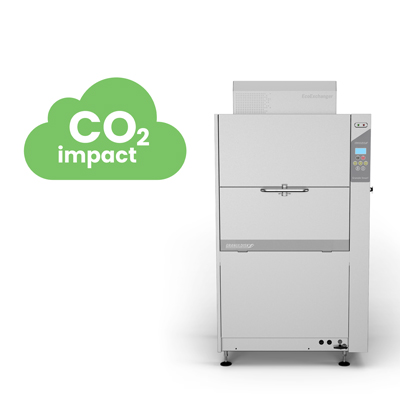

CO2 Impact Smart Plus 400X400

Energy optimization with GD Link

GD Link is an energy optimization feature that can be fitted to all our granule-based ware washers and allows for the machine to communicate with systems that are based on the DIN 18875 standard.

GD Link enables connecting and controlling the machine through a central energy optimization unit, which helps to avoid any production disruptions in individual devices as the shutdown periods are computer-controlled and automatically reduced to a minimum. It also eliminates the instantaneous energy peaks that can happen when multiple types of equipment run simultaneously.

With the machine connected to an energy optimization system, you will minimize the overall peak load and at the same time minimize disruptions. GD link is possible to retrofit on all granule-based models dating back to 2015.

Talk to your local Nor:disk representative to learn more and order GD Link.

GD Link2

Marine Option

Need your solution to work within a marine or offshore operation? No problem.



Our Marine Option add-on ensures a stable, reliable, and safe pot washing solution - even when waters are rough.

Factory fitted add-on - available for Standard and Retail editions.

SIMpel™

Let us introduce you to a feature that will make your work-life easier, whether you are an end-user or a service partner. We call it SIMpel™. A smart tool that connects you with an online portal filled with all the relevant information about your Nor:disk industrial warewasher.

Image And Text 840X840 QR code Scan

Want to see it live?

At Nor:disk, we’re proud of our performance. We want you to be able to experience it first-hand and see all the benefits that our pot washers provide. Meet us in a local showroom, reference kitchen, or join us via live stream and we will talk you through our technology, and what it can do for you.

Image W Text 800X622 Livewash

Granule Smart+ technical details

Editions
Standard Edition / FreeFlow Edition / Retail Edition / Retail FreeFlow Edition
Outer dimensions (H x W x D)
1736/2,079 mm (±25) x 1,025 mm x 957/1,317 mm
Wash programs with granules:
ECO: 2 min 30 sec/ Short: 3 min 30 sec/ Normal: 5 min 30 sec
Wash programs without granules:
ECO: 2 min 30 sec/ Short: 2 min 40 sec/ Normal: 4 min 40 sec
Wash programs PLUS mode (crockery wash):
ECO: 1 min 30 sec/ Short: 2 min / Normal: 2 min 30 sec
Pot wash - capacity per program:
6+1 GN 1/1 or 1/2 65 mm depth or 3 GN 1/1 or 1/2 up to 200 mm depth and 3 GN 1/1 or GN 1/2 up to 65 mm depth, or similar in other pots.
Pot wash - hourly capacity max./normal (normal incl. handling):
Standard Edition: 168/126 GN1/1 or similar in other pots FreeFlow Edition: 168/147 GN1/1 or similar in other pots
PLUS mode (crockery) - hourly capacity max./normal (normal incl. handling):
40/33 500x500 mm wash baskets
Wash / rinse temp:
65 °C / 85 °C

Pros

Web Icn Capacity

HIGH CAPACITY

Web Icn Water Vatten

WATER-SAVING

Web Icn 2:30 Min Sol

TIME-SAVING

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Dosing Equipment Midnatt

Dosing equipment

Web Icn Plus Combi Mode Vatten

PLUS mode

Web Icn Sensor Vatten

Patented sensor

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Steam Reduction Himmel

Steam reduction

Web Icn Ecoexchanger Gräs

EcoExchanger

Web Icn Reminders Sol

Auto-reminders

Web Icn Capacity

HIGH CAPACITY

Wash 7 GN 1/1 per cycle - up to 168 GN 1/1 or GN 1/2 per hour. Crockery: 1 wash basket per cycle - 33 per hour. Wash with or without PowerGranules BIO®

Web Icn Water Vatten

WATER-SAVING

Saves on average 920 liters per day, adding up to 280.000 liters per year.

Web Icn 2:30 Min Sol

TIME-SAVING

Clean pots and pans in 2 min 30sec - pre-washing eliminated. 90-sec cycles for crockery and utensil wash.

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Saves on average 1,3 liters per day, adding up to 400 liters per year.

Dosing Equipment Midnatt

Dosing equipment

Liquid detergent and rinse aid dosing dispenser with peristaltic pump and detergent dosing sensor is available as an optional factory-fitted add-on.

Web Icn Plus Combi Mode Vatten

PLUS mode

Smart feature for crockery, glass, and plastic ware. Use a standard plastic crockery basket, and the machine auto-detects and selects the appropriate wash mode for you.

Web Icn Sensor Vatten

Patented sensor

Built-in patented wash basket sensor detects what type of basket is loaded and auto-selects the appropriate wash mode for you. Helps avoid mishaps like accidentally treating your tableware with a harsh pot wash program.

Web Icn Hygiene New Havtorn

HACCP wash log

The control system stores vital HACCP data for up to 200 wash cycles. The data log can be accessed via the control panel display or exported to a USB stick for further use or storage.

Web Icn Steam Reduction Himmel

Steam reduction

With the add-on steam reduction to your Granule Smart+ you ensure a more pleasant working environment for staff and lower ventilation requirements.

Web Icn Ecoexchanger Gräs

EcoExchanger

The add-on EcoExchanger cleverly combines steam reduction and heat recovery in one and improves the working environment while also reducing the energy needed for heating the wash tank by up to 40%.

Web Icn Reminders Sol

Auto-reminders

The smart control system keeps track of the number of run wash cycles and reminds you when it's time to change wash water, granules, and to schedule your next preventive maintenance appointment.

Web Icn Capacity

HIGH CAPACITY

Wash 7 GN 1/1 per cycle - up to 168 GN 1/1 or GN 1/2 per hour. Crockery: 1 wash basket per cycle - 33 per hour. Wash with or without PowerGranules BIO®

Models

Image And Text 840X840 Smart Plus Standard Edition

Standard Edition

Space-saving stand-alone version that operates with a single pot wash basket, and lower door hatch that folds out into a built-in loading table. The low total height of the pot washer allows it to be located even in small and cramped spaces, as it occupies less than 1 sqm floor space and fits within standard ceiling heights.

Image And Text 840X840 Smart Plus Freeflow Edition

FreeFlow Edition

Maximize flexibility, flow, and capacity with two trolleys and an extra standard pot wash basket. This setup allows for multitasking and emptying/filling one basket while the other is washed. The trolley offers loading options on two levels and can be used to either transport wash ware or the whole basket. Lockable swivel wheels enable you to safely park the trolley when needed.

Image And Text 840X840 Smart Plus Retail Edition

Retail Edition

The complete package for the customer within the retail sector. It contains the wash basket with a bottom grid, one wash basket for plates and crockery, and one cover grid. A setup that makes it easy to clean stubborn chicken grids, but also the more delicate deli counter display wares.

Image And Text 840X840 Smart Plus Retail Freeflow Edition

Retail FreeFlow Edition

A boosted version of the Retail Edition package, adding an extra pot wash basket and two trolleys. This setup allows for multitasking and emptying/filling one basket while the other is washed.

PLAY - 00:02:10

Granule Smart+

Hear Annica Bystedt, Training Manager and Product Specialist talk about Granule Smart+

Is Granule Smart+ a suitable option for you?

Leave your details below and we will contact you shortly to discuss.

* By filling in the form above, you agree that Nor:disk stores your personal information. The purpose of such a task is to improve the website´s reliablility and safety for you as a visitor and to tailor your experience. We handle all personal data according to GDPR and your consent can be withdrawn when desired. You can read more about how we use cookies here: https://www.nordiskclean.com/sv-se/privacy-policy/

Foldable hatch of Smart+ in use

Ergonomic design

The ergonomic design of the wash basket and smooth transition from the machine to the loading table / fold-out hatch allows for hassle-free handling and less heavy lifting, which puts the user at less risk of developing work-related injuries. To ease daily cleaning, the fold-out hatch is foldable to ease access to all the interior parts during daily cleaning.

See the video
Overlay Web 3Modes

3 cycles and 2 modes

Wash hygienically clean in minutes, using a minimum of natural resources! No pre-washing needed - just scrape and load, then choose cycle length and wash mode. There are 2 different modes you can use, granule mode or water-only mode. It all depends on what you need to wash and how severely dirty or burnt it is.
